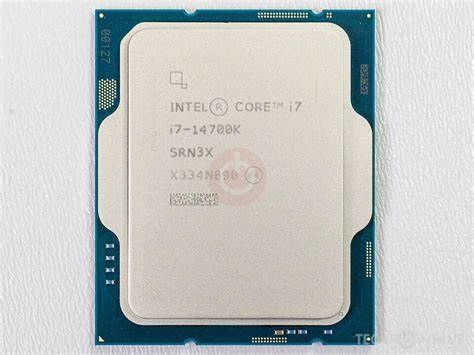

پردازنده نسل 14 اینتل i7 14700K

Product Collection

Intel® Core™ i7 Processors (14th gen)

Code Name

Products formerly Raptor Lake

Vertical Segment

Desktop

Lithography

Intel 7

Processor Number

i7-14700K

Total Cores

20

Total Threads

28

Intel® Turbo Boost Max Technology 3.0 Frequency

5.6 GHz

Performance-core Max Turbo Frequency

5.5 GHz

Efficient-core Max Turbo Frequency

4.3 GHz

# of Performance-cores

8

Efficient-core Base Frequency

2.5 GHz

Performance-core Base Frequency

3.4 GHz

Max Turbo Frequency

5.6 GHz

# of Efficient-cores

12

Processor Base Power

125 W

Maximum Turbo Power

253 W

Cache

33 MB Intel® Smart Cache

Marketing Status

Launched

Total L2 Cache

28 MB

Launch Date

Q4'23

Embedded Options Available

No

Max Memory Size (dependent on memory type)

192 GB

Memory Types

Up to DDR5 5600 MT/s / Up to DDR4 3200 MT/s

Max # of Memory Channels

2

Max Memory Bandwidth

89.6 GB/s

ECC Memory Supported

Yes

GPU Name

Intel® UHD Graphics 770

Graphics Base Frequency

300 MHz

Graphics Max Dynamic Frequency

1.6 GHz

Graphics Output

eDP 1.4b, DP 1.4a, HDMI 2.1

Execution Units

32

Max Resolution (HDMI)

4096 x 2160 @ 60Hz

Max Resolution (DP)

7680 x 4320 @ 60Hz

Max Resolution (eDP - Integrated Flat Panel)

5120 x 3200 @ 120Hz

DirectX* Support

12

OpenGL* Support

4.5

OpenCL* Support

3.0

Multi-Format Codec Engines

2

Intel® Clear Video HD Technology

Yes

Intel® Quick Sync Video

Yes

# of Displays Supported

4

Direct Media Interface (DMI) Revision

4.0

Max # of DMI Lanes

8

Scalability

1S Only

Device ID

0xA780

PCI Express Configurations

Up to 1x16+4, 2x8+4

Max # of PCI Express Lanes

20

Sockets Supported

FCLGA1700

Max CPU Configuration

1

Thermal Solution Specification

PCG 2020A

T-JUNCTION

100°C

Package Size

45.0 mm x 37.5 mm

Max Operating Temperature

100 °C

PCI Express Revision

5.0 and 4.0

Intel® Gaussian & Neural Accelerator

3.0

Intel® Thread Director

Yes

Intel® Volume Management Device (VMD)

Yes

Intel® Deep Learning Boost (Intel® DL Boost) on CPU

Yes

Intel® Speed Shift Technology

Yes

Intel® Turbo Boost Max Technology 3.0

Yes

Intel® Turbo Boost Technology

2.0

Intel® Hyper-Threading Technology

Yes

Instruction Set

64-bit

Idle States

Yes

Enhanced Intel SpeedStep® Technology

Yes

Thermal Monitoring Technologies

Yes

Intel vPro® Eligibility

Intel vPro® Enterprise, Intel vPro® Essentials, Intel vPro® Platform

Intel® Hardware Shield Eligibility

Yes

Intel® 64

Yes

Intel® Threat Detection Technology (TDT)

Yes

Intel® Active Management Technology (AMT)

Yes

Intel® Remote Platform Erase (RPE)

Yes

Intel® Standard Manageability (ISM)

Yes

Intel® One-Click Recovery

Yes

Intel® Total Memory Encryption - Multi Key

Yes

Intel® AES New Instructions

Yes

Secure Key

Yes

Intel® OS Guard

Yes

Execute Disable Bit

Yes

Intel® Trusted Execution Technology

Yes

Instruction Set Extensions

Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

Intel® Control-Flow Enforcement Technology

Yes

Intel® Boot Guard

Yes

Mode-based Execute Control (MBEC)

Yes

Intel® Virtualization Technology with Redirect Protection (VT-rp)

Yes

Intel® Stable IT Platform Program (SIPP)

Yes

Intel® Virtualization Technology for Directed I/O (VT-d)

Yes

Intel® Virtualization Technology (VT-x)

Yes

Intel® VT-x with Extended Page Tables (EPT)

Yes
