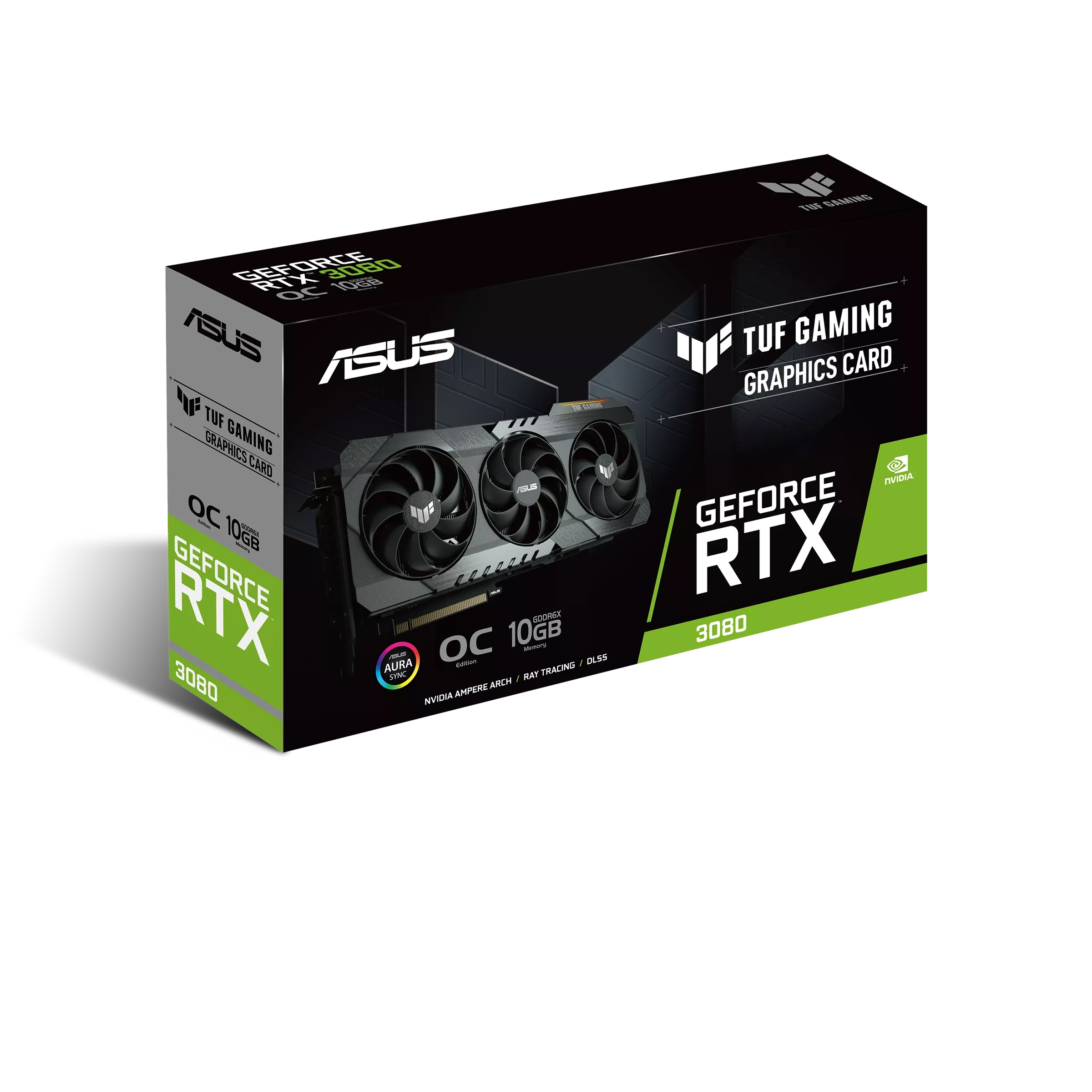

کارت گرافیک ایسوس TUF RTX 3080 OC 10GB

GPU Name

GA102

GPU Variant

GA102-200-KD-A1

Architecture

Ampere

Foundry

Samsung

Process Size

8 nm

Transistors

28,300 million

Density

45.1M / mm²

Die Size

628 mm²

Chip Package

BGA-3328

Memory Size

10 GB

Memory Type

GDDR6X

Memory Bus

320 bit

Bandwidth

760.3 GB/s

Pixel Rate

171.4 GPixel/s

Texture Rate

485.5 GTexel/s

FP16 (half)

31.07 TFLOPS (1:1)

FP32 (float)

31.07 TFLOPS

FP64 (double)

485.5 GFLOPS (1:64)

DirectX

12 Ultimate (12_2)

OpenGL

4.6

OpenCL

3.0

Vulkan

1.3

CUDA

8.6

Release Date

Sep 1st, 2020

Availability

Sep 17th, 2020

Shader Model

6.8

Generation

GeForce 30

Predecessor

GeForce 20

Successor

GeForce 40

Production

Active

Bus Interface

PCIe 4.0 x16

Base Clock

1440 MHz

Boost Clock

1785 MHz (+4%)

Shading Units

8704

TMUs

272

ROPs

96

Memory Clock

1188 MHz 19 Gbps effective

SM Count

68

RT Cores

68

L1 Cache

128 KB (per SM)

L2 Cache

5 MB

Length

300 mm

Width

127 mm

Slot Width

Dual-slot

Height

52 mm

TDP

320 W

Suggested PSU

700 W

Outputs

2x HDMI 2.1 / 3x DisplayPort 1.4a

Power Connectors

2x 8-pin

Idle Fan Stop

Yes

Board Number

PG132 SKU 30

Tensor Cores

272
