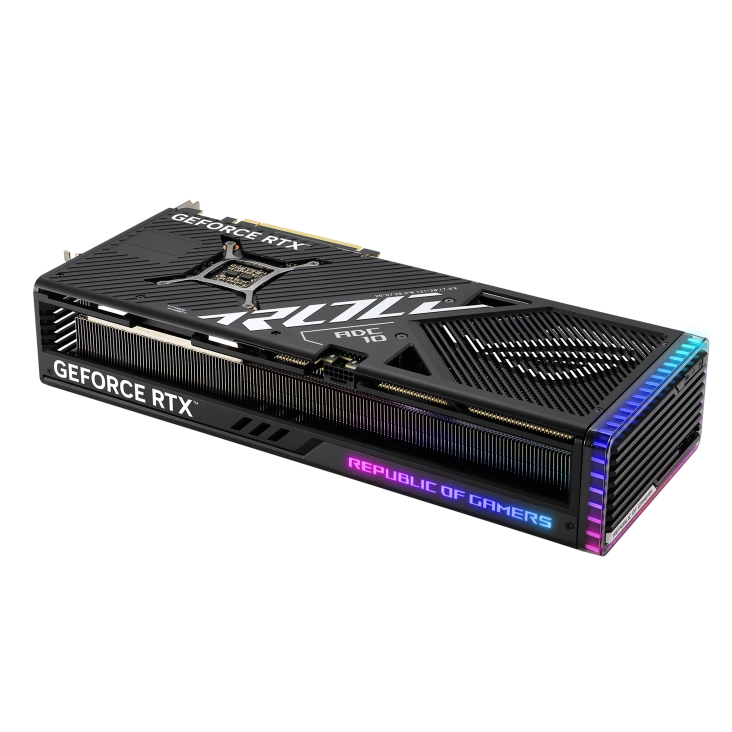

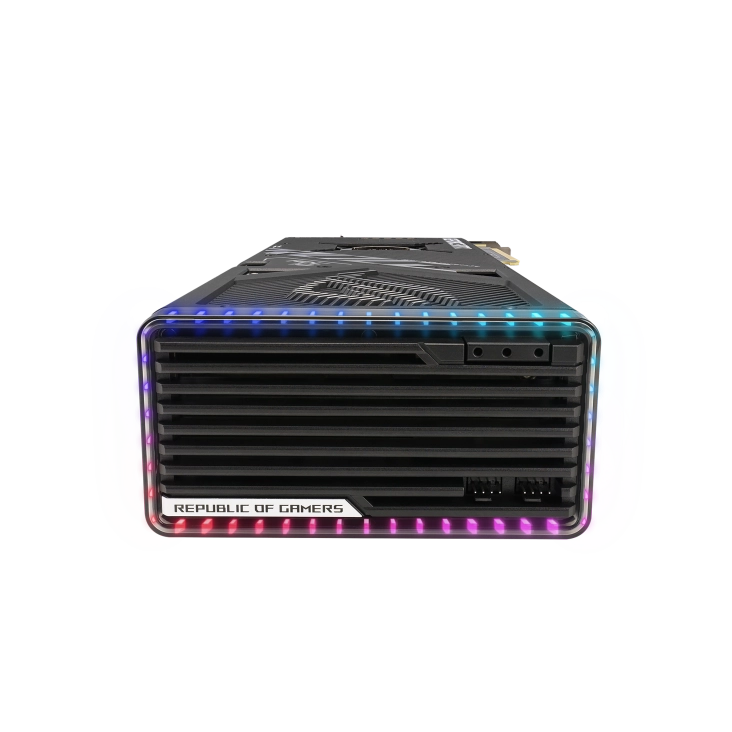

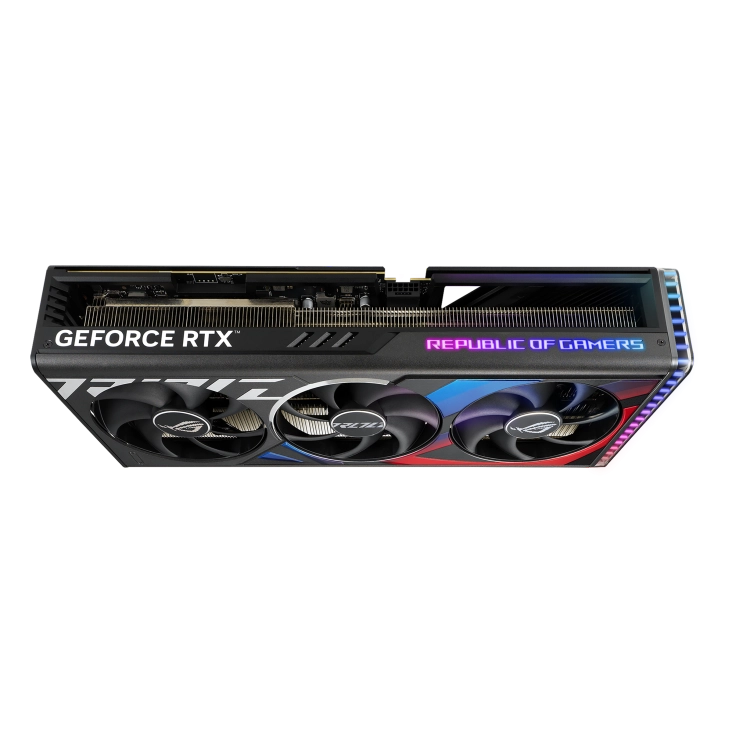

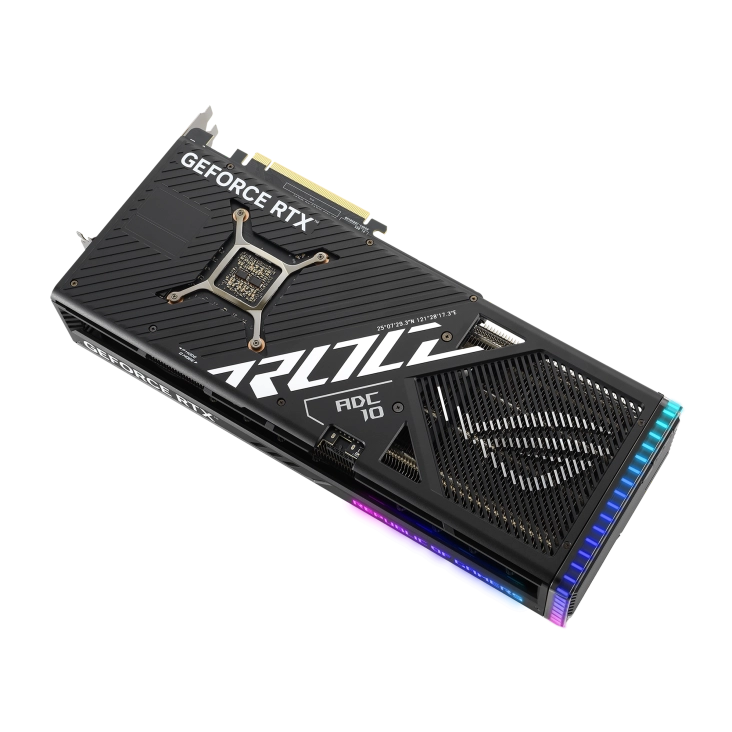

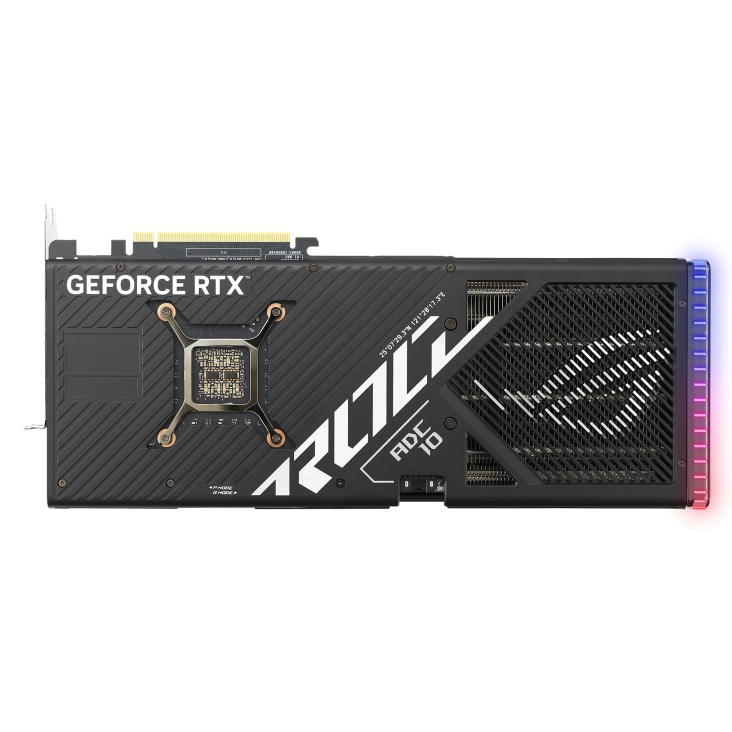

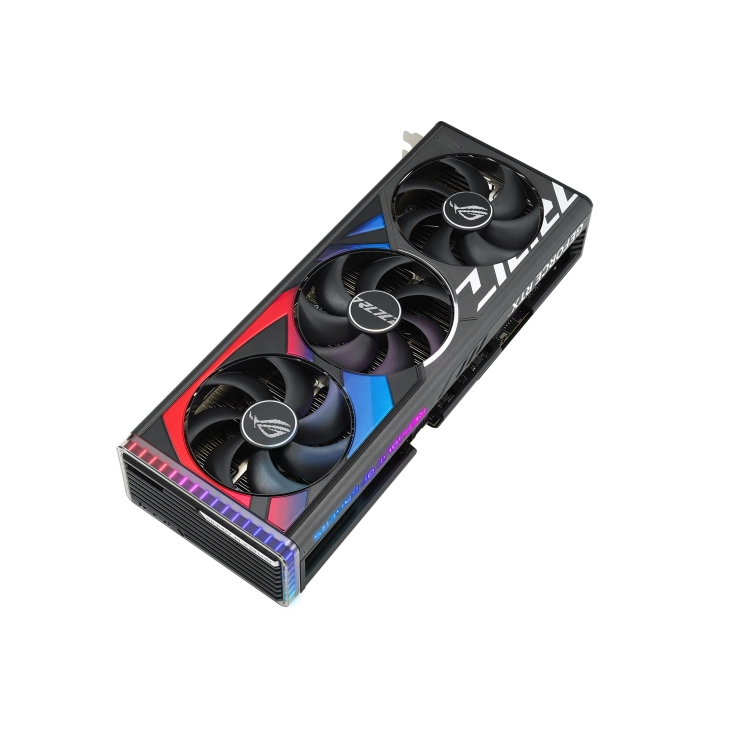

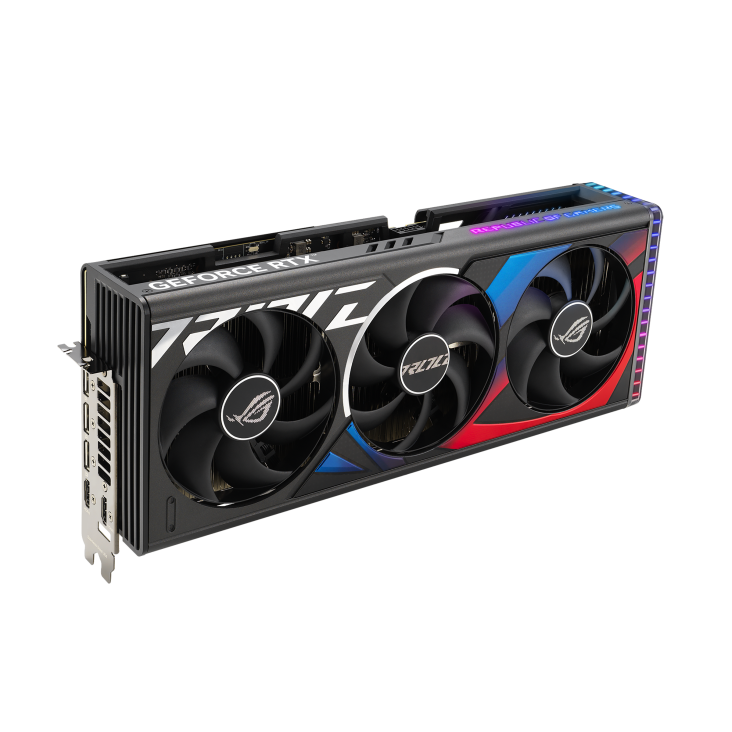

کارت گرافیک ایسوس ROG STRIX RTX 4080 SUPER 16GB GDDR6X OC Black

GPU Name

AD103

GPU Variant

AD103-400-A1

Architecture

Ada Lovelace

Foundry

TSMC

Process Size

5 nm

Transistors

45,900 million

Density

121.1M / mm²

Die Size

379 mm²

Release Date

Jan 8th, 2024

Availability

Jan 31st, 2024

Generation

GeForce 40

Predecessor

GeForce 30

Successor

GeForce 50

Production

Active

Bus Interface

PCIe 4.0 x16

Base Clock

2295 MHz

Boost Clock

2640 MHz (+4%)

Memory Clock

1438 MHz 23 Gbps effective

Memory Size

16 GB

Memory Type

GDDR6X

Memory Bus

256 bit

Bandwidth

736.3 GB/s

Shading Units

10240

TMUs

320

ROPs

112

SM Count

80

Tensor Cores

320

RT Cores

80

L1 Cache

128 KB (per SM)

L2 Cache

64 MB

Pixel Rate

295.7 GPixel/s

Texture Rate

844.8 GTexel/s

FP16 (half)

54.07 TFLOPS (1:1)

FP32 (float)

54.07 TFLOPS

FP64 (double)

844.8 GFLOPS (1:64)

DirectX

12 Ultimate (12_2)

OpenGL

4.6

OpenCL

3.0

Vulkan

1.3

CUDA

8.9

Shader Model

6.8

Slot Width

Triple-slot

Length

358 mm

Width

149 mm

Height

70 mm

TDP

320 W

Suggested PSU

700 W

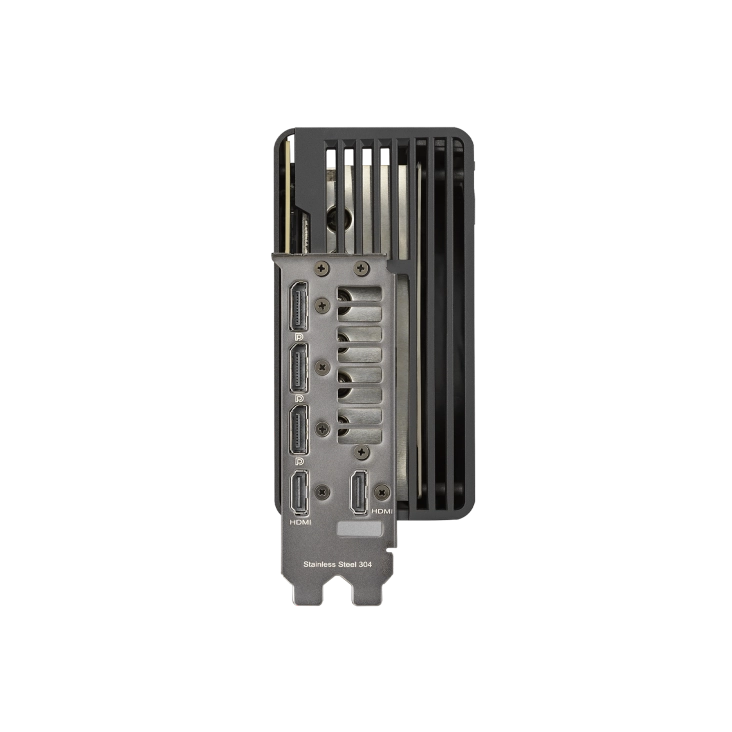

Outputs

2x HDMI 2.1 / 3x DisplayPort 1.4a

Power Connectors

1x 16-pin

Board Number

PG139 SKU 355
