کارت گرافیک ایسوس مدل ROG Strix GeForce GTX1650 OC Edition 4GB

GPU Name

TU117

GPU Variant

TU117-300-A1

Architecture

Turing

Foundry

TSMC

Process Size

12 nm

Transistors

4,700 million

Density

23.5M / mm²

Die Size

200 mm²

Chip Package

BGA-960

Release Date

Apr 23rd, 2019

Generation

GeForce 16

Predecessor

GeForce 10

Successor

GeForce 20

Production

Active

Bus Interface

PCIe 3.0 x16

Base Clock

1485 MHz

Boost Clock

1830 MHz (+10%)

Memory Clock

2001 MHz 8 Gbps effective

Memory Size

4 GB

Memory Type

GDDR5

Memory Bus

128 bit

Bandwidth

128.1 GB/s

Shading Units

896

TMUs

56

ROPs

32

SM Count

14

L1 Cache

64 KB (per SM)

L2 Cache

1024 KB

Pixel Rate

58.56 GPixel/s

Texture Rate

102.5 GTexel/s

FP16 (half)

6.559 TFLOPS (2:1)

FP32 (float)

3.279 TFLOPS

FP64 (double)

102.5 GFLOPS (1:32)

DirectX

12 (12_1)

OpenGL

4.6

OpenCL

3.0

Vulkan

1.3

CUDA

7.5

Shader Model

6.8

Slot Width

Dual-slot

Length

241 mm

Width

130 mm

Height

45 mm

TDP

75 W

Suggested PSU

250 W

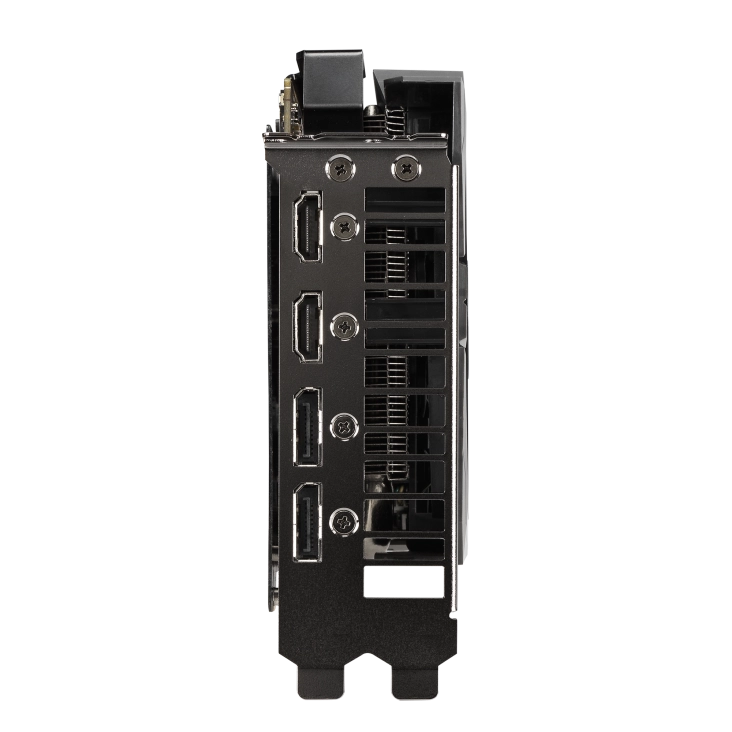

Outputs

2x HDMI 2.0 / 2x DisplayPort 1.4a

Power Connectors

1x 6-pin

Board Number

PG174 SKU 0
