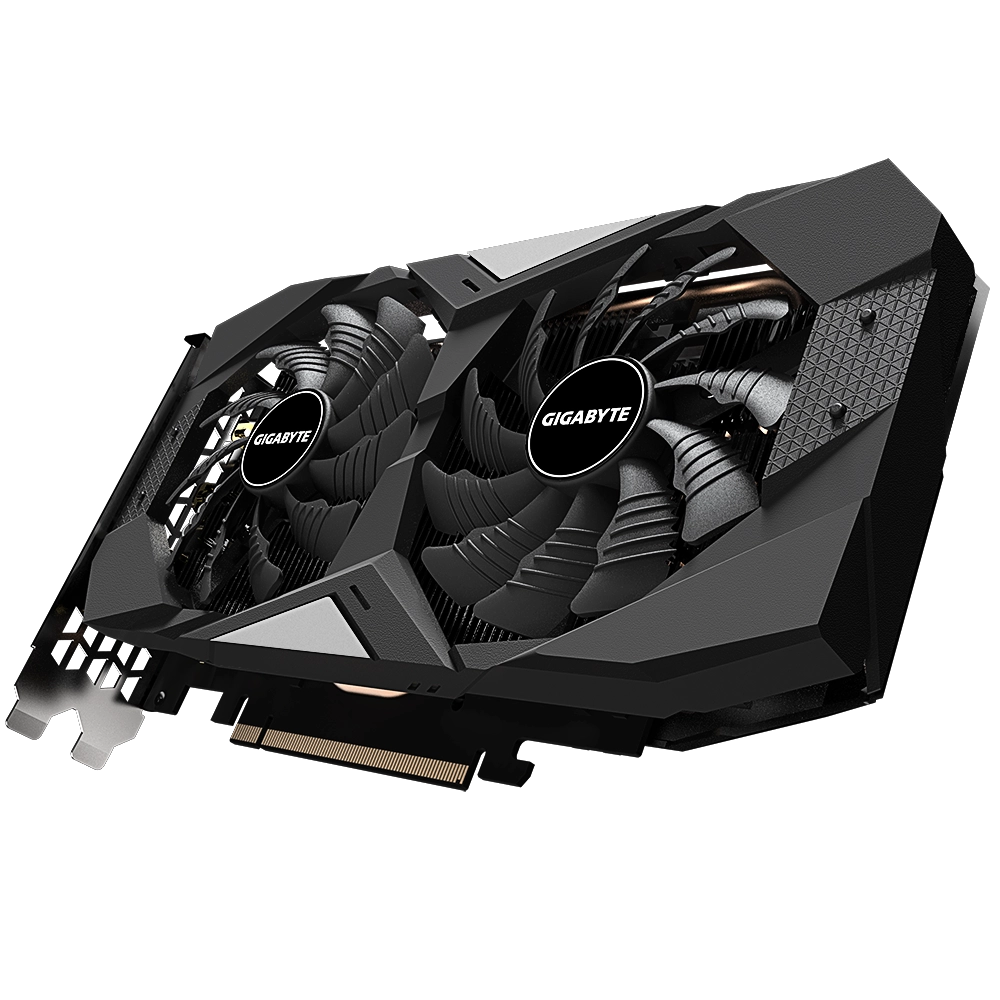

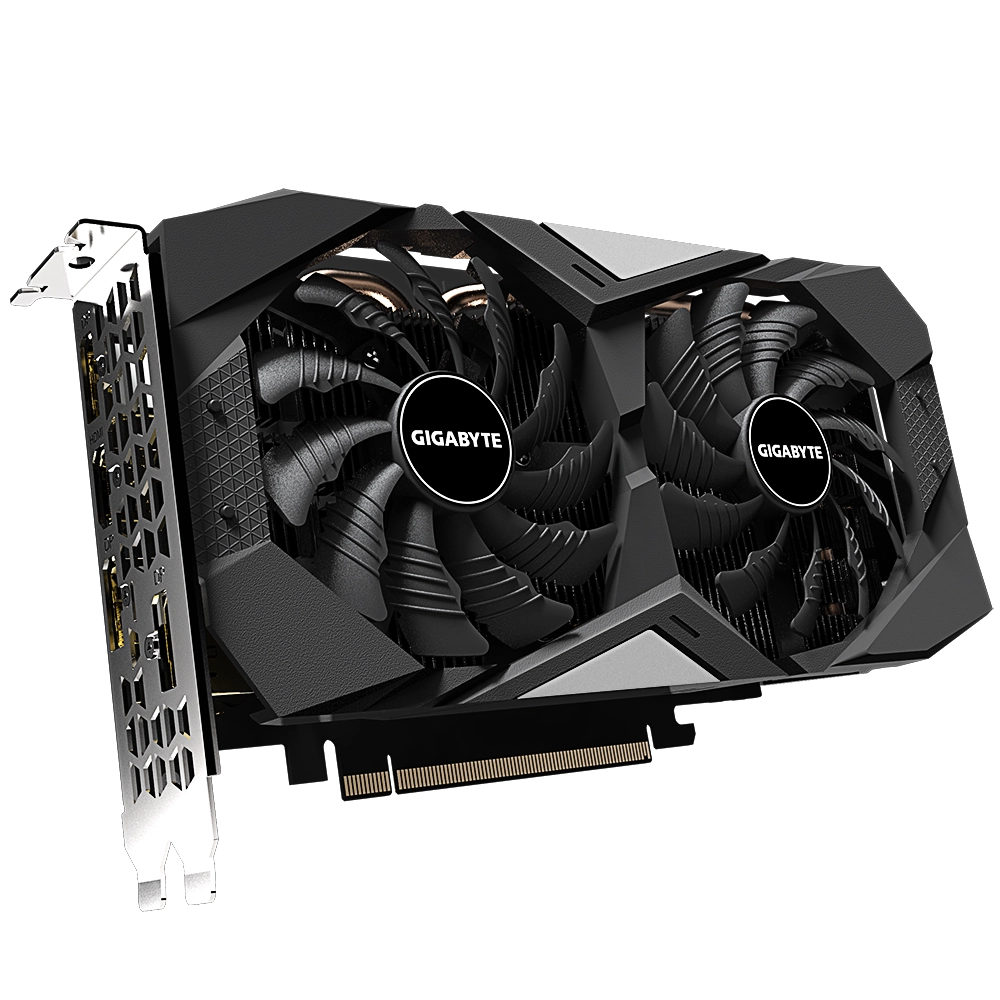

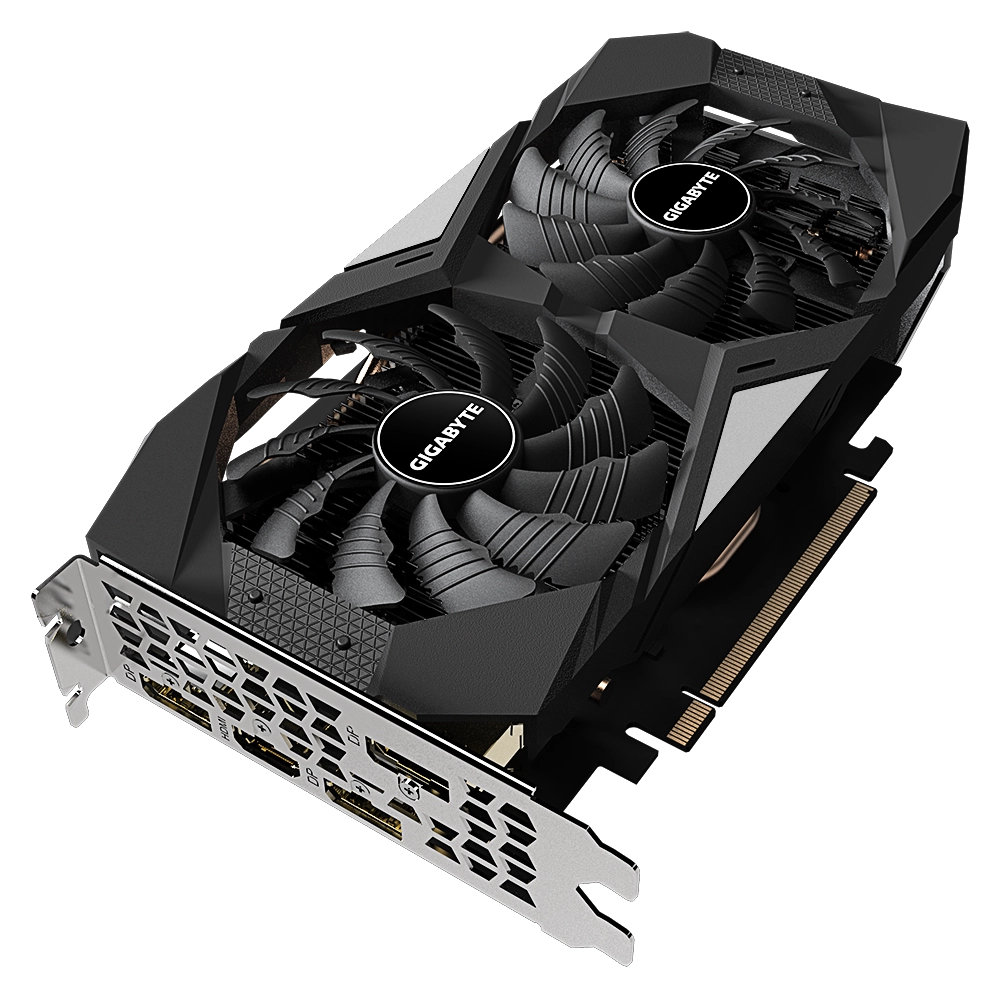

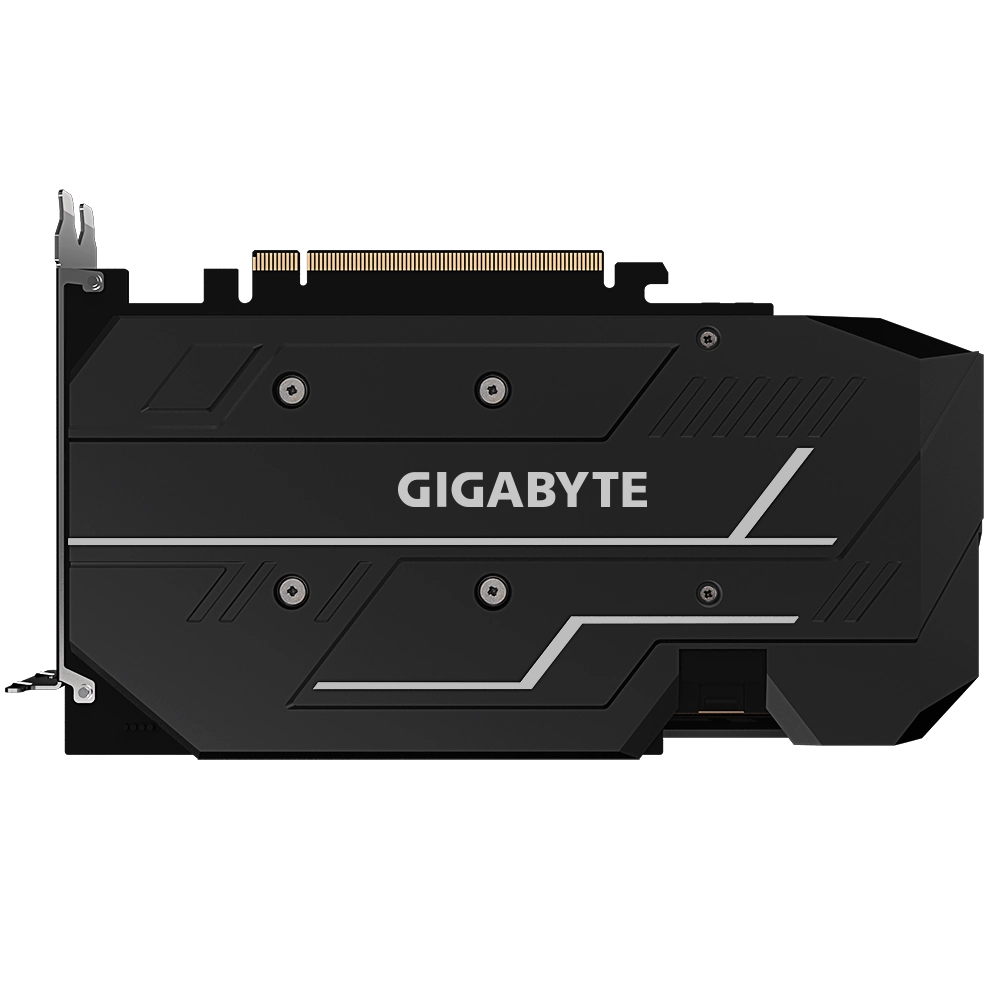

VGA GIGABYTE OC GeForce RTX2060 6GB GDDR6 کارت گرافیک گیگابایت او سی ۲۰۶۰

GPU Name

TU106

GPU Variant

TU106-200A-KA-A1

Architecture

Turing

Foundry

TSMC

Process Size

12 nm

Transistors

10,800 million

Density

24.3M / mm²

Die Size

445 mm²

Chip Package

BGA-2228

Release Date

Jan 7th, 2019

Generation

GeForce 20

Predecessor

GeForce 10

Successor

GeForce 30

Production

Active

Bus Interface

PCIe 3.0 x16

Base Clock

1365 MHz

Boost Clock

1680 MHz

Memory Clock

1750 MHz / 14 Gbps effective

Memory Size

6 GB

Memory Type

GDDR6

Memory Bus

192 bit

Bandwidth

336.0 GB/s

Shading Units

1920

TMUs

120

ROPs

48

SM Count

30

Tensor Cores

240

RT Cores

30

L1 Cache

64 KB (per SM)

L2 Cache

3 MB

Pixel Rate

80.64 GPixel/s

Texture Rate

201.6 GTexel/s

FP16 (half)

12.90 TFLOPS (2:1)

FP32 (float)

6.451 TFLOPS

FP64 (double)

201.6 GFLOPS (1:32)

DirectX

12 Ultimate (12_2)

OpenGL

4.6

OpenCL

3.0

Vulkan

1.3

CUDA

7.5

Shader Model

6.8

Slot Width

Dual-slot

Length

229 mm

Width

113 mm

Height

35 mm

TDP

160 W

Suggested PSU

450 W

Outputs

1x DVI / 1x HDMI 2.0 / 2x DisplayPort 1.4a / 1x USB Type-C

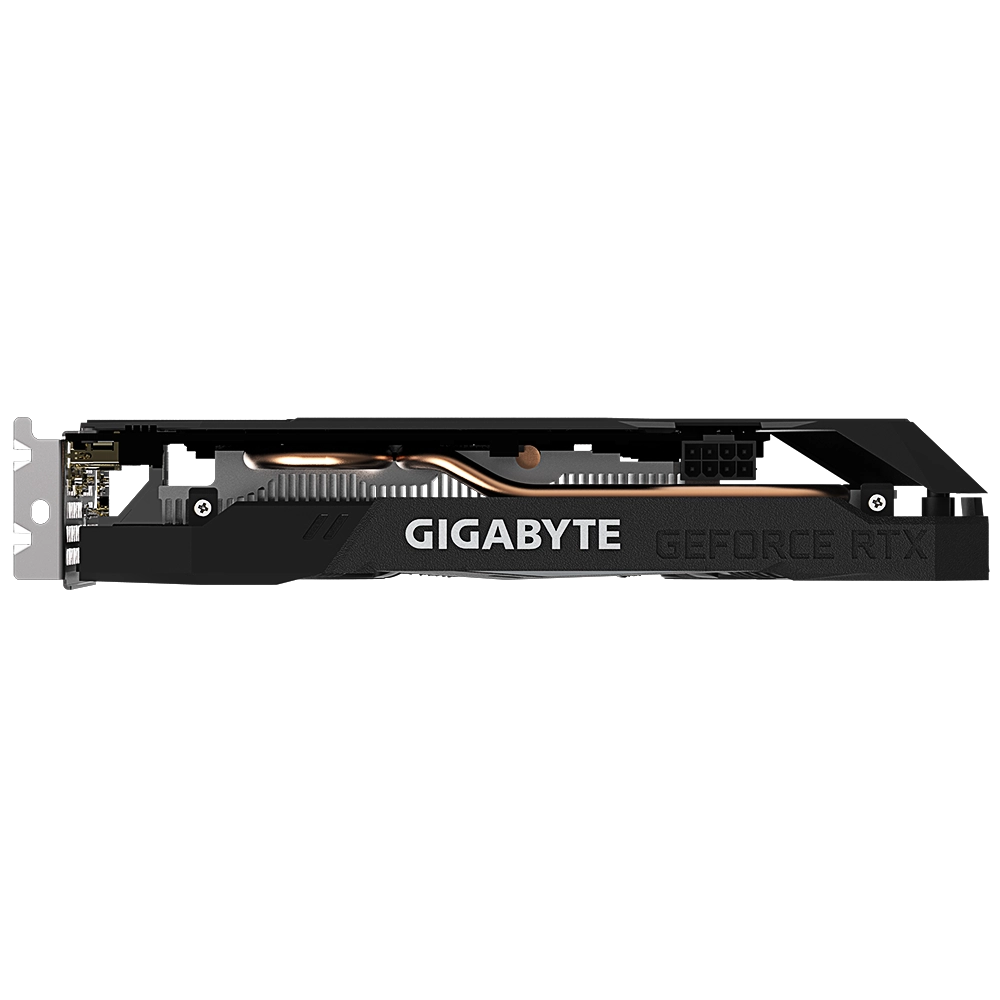

Power Connectors

1x 8-pin

Board Number

PG160 SKU 42
