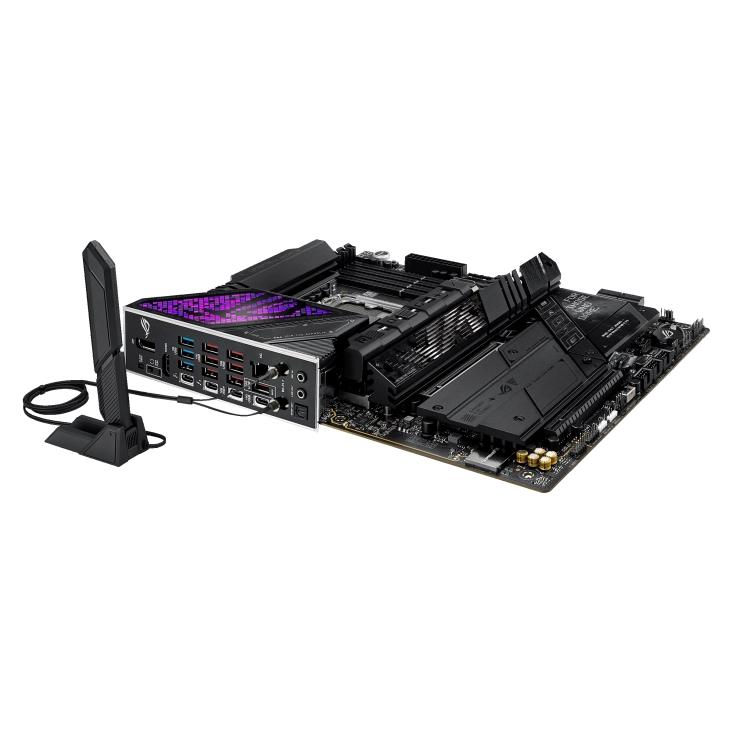

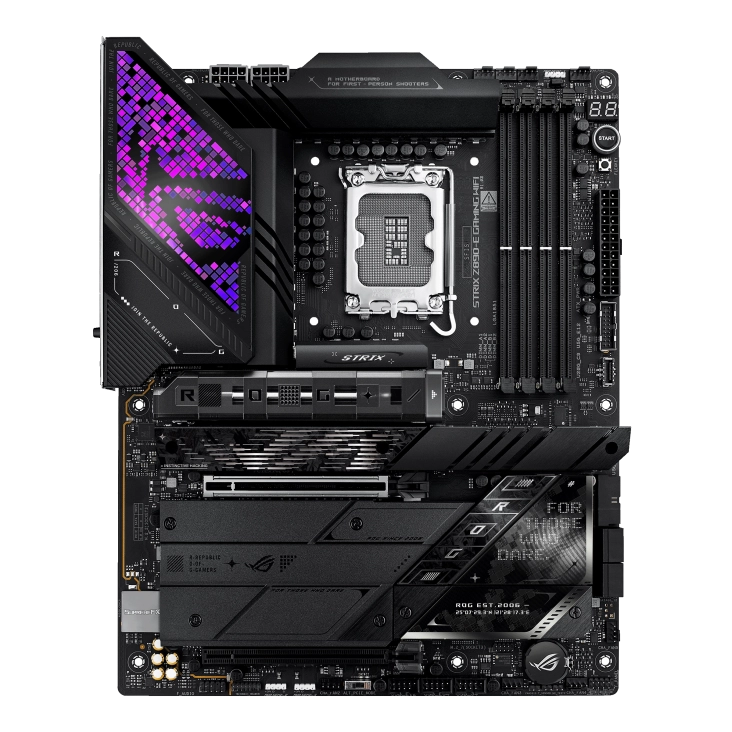

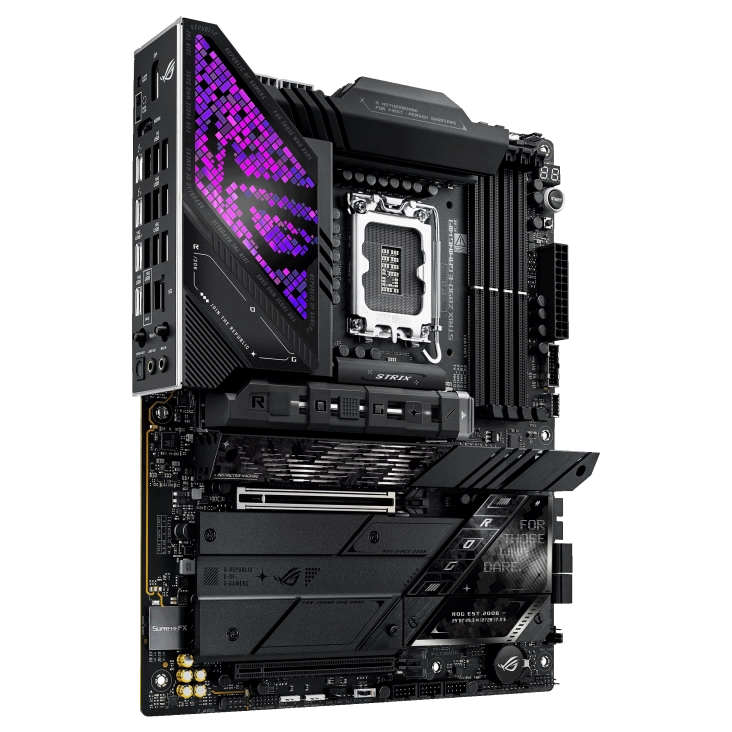

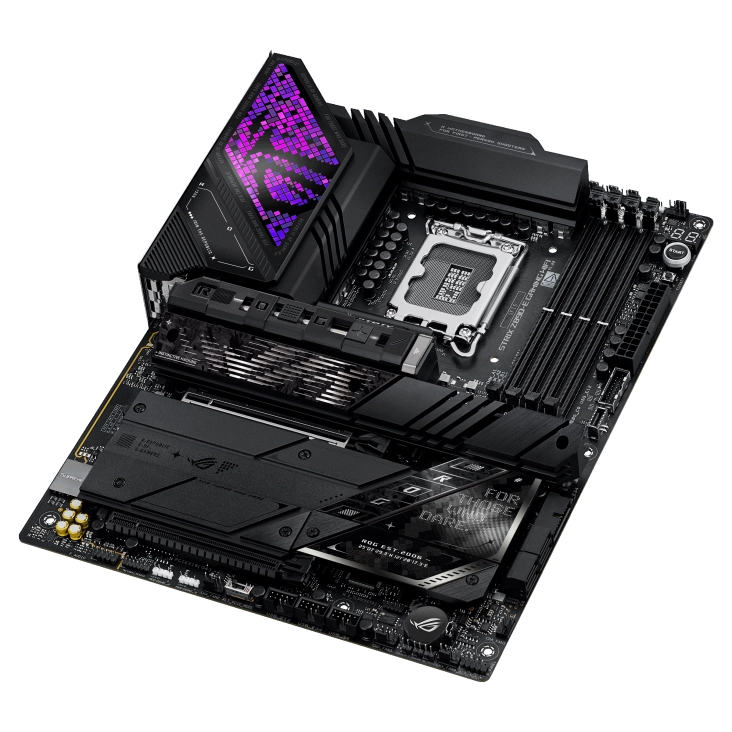

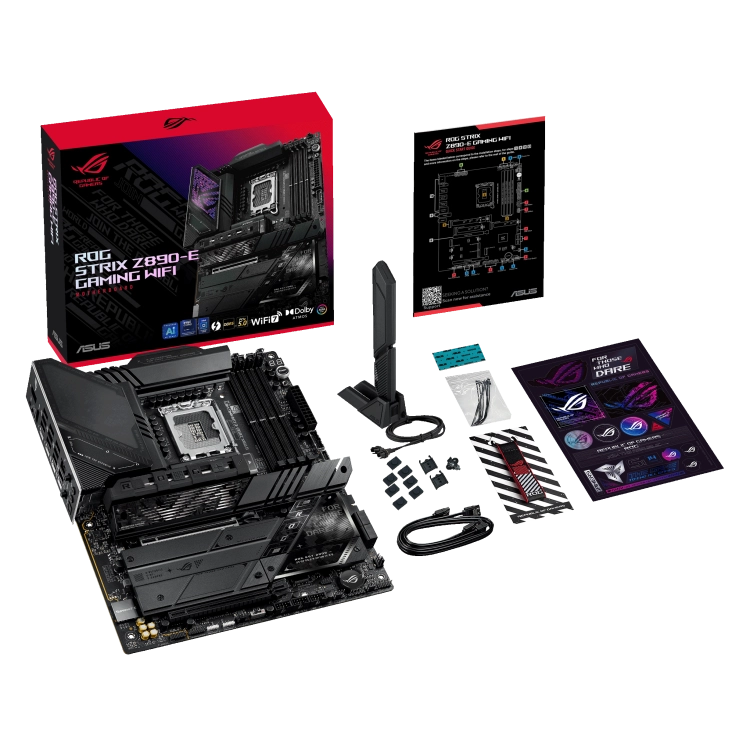

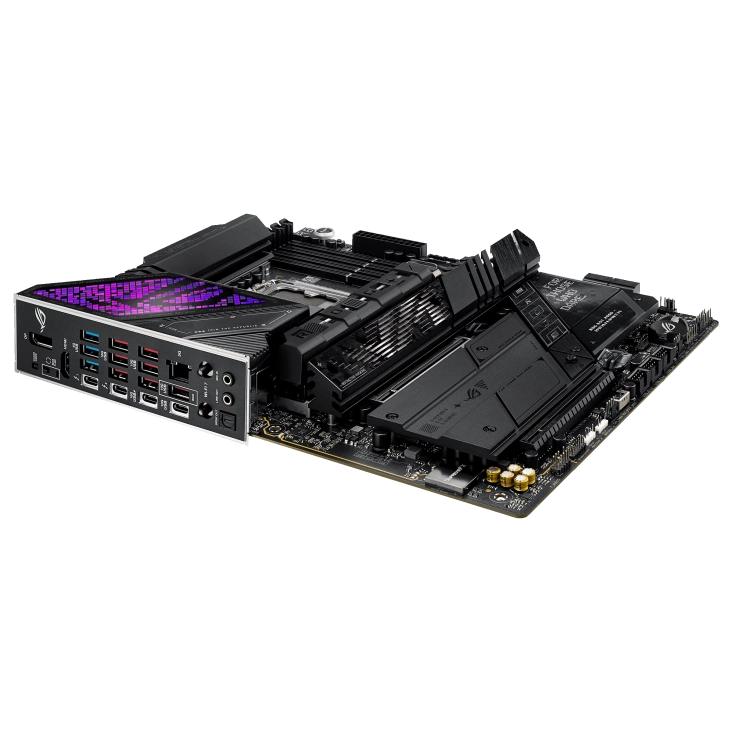

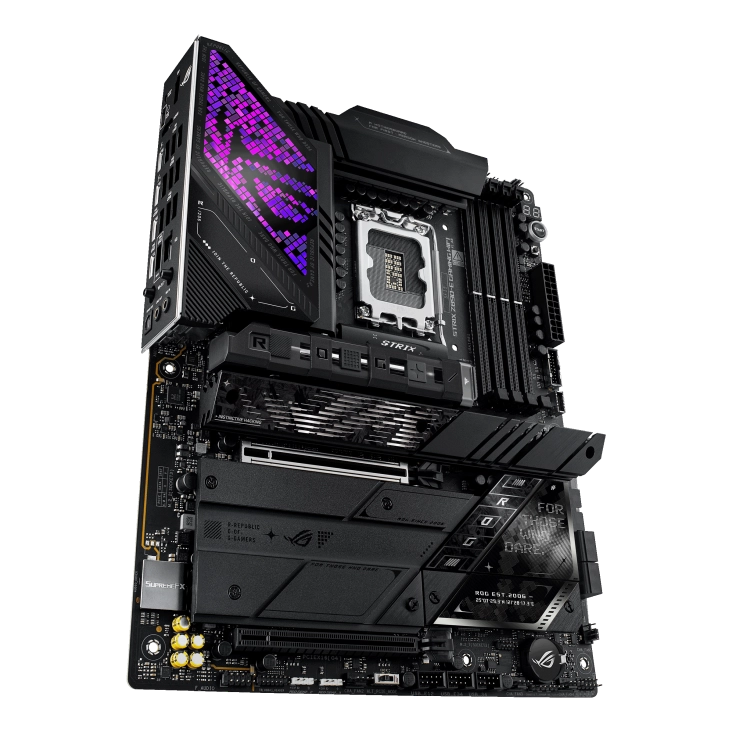

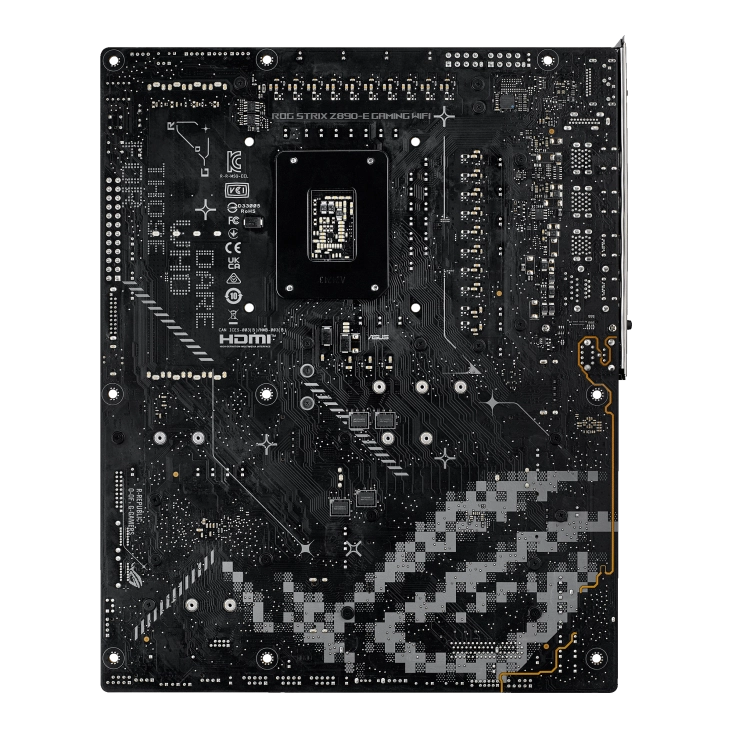

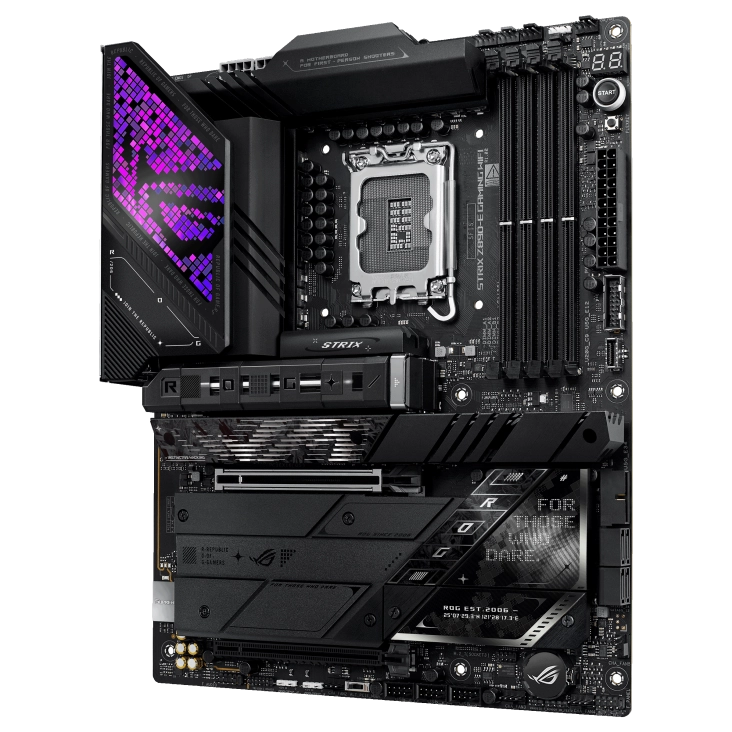

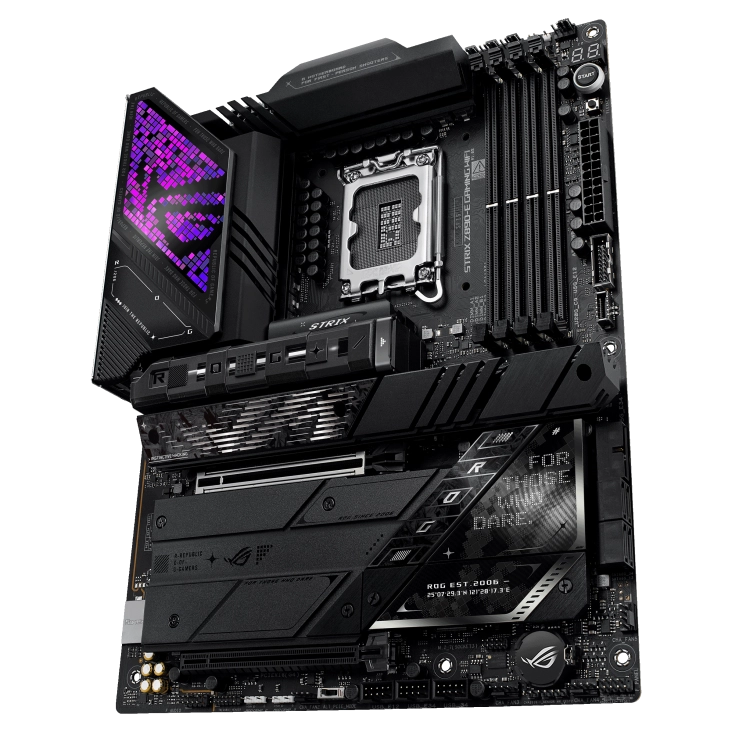

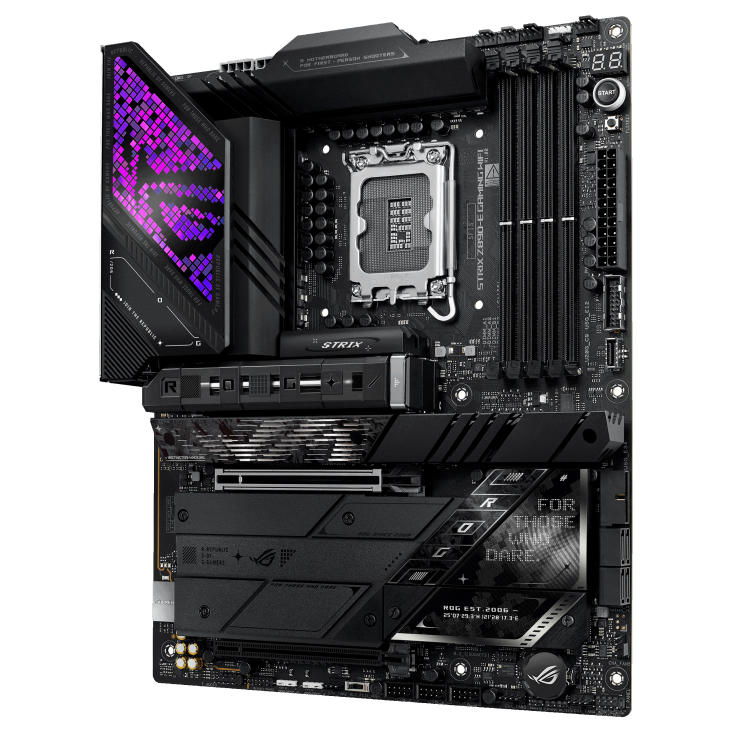

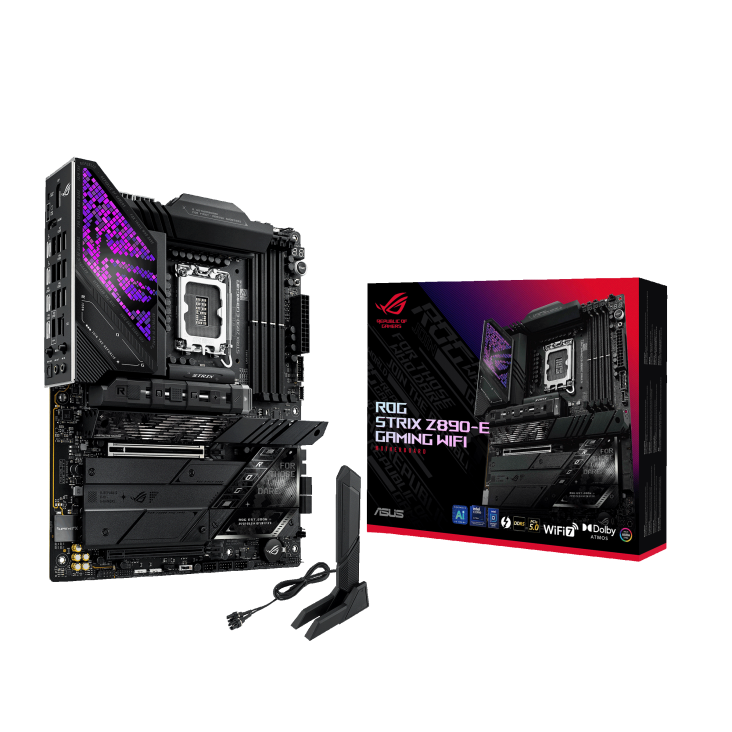

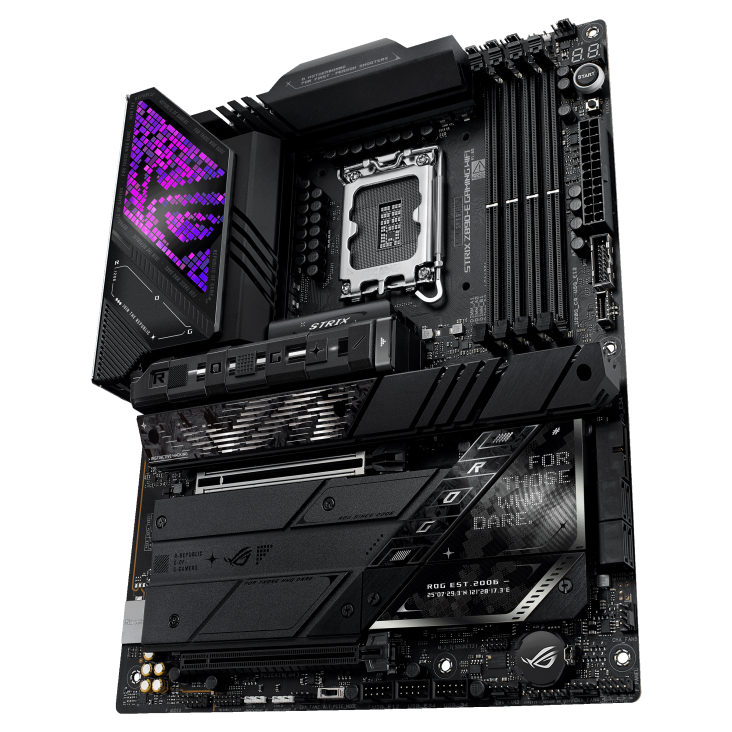

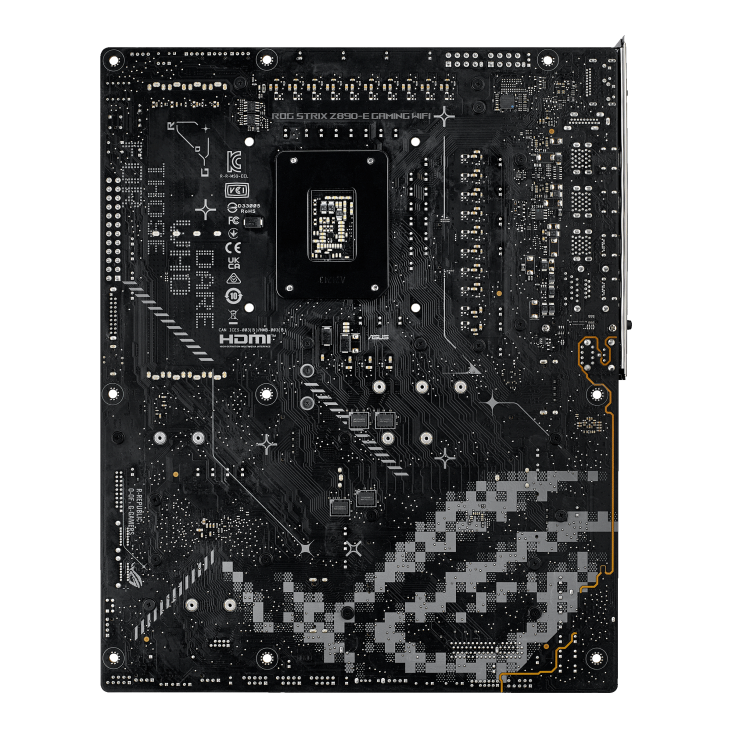

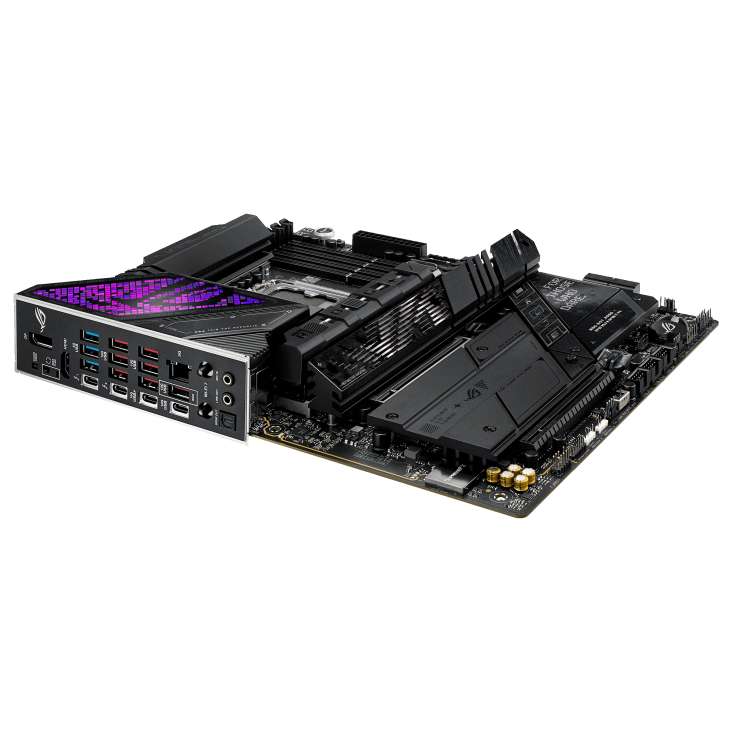

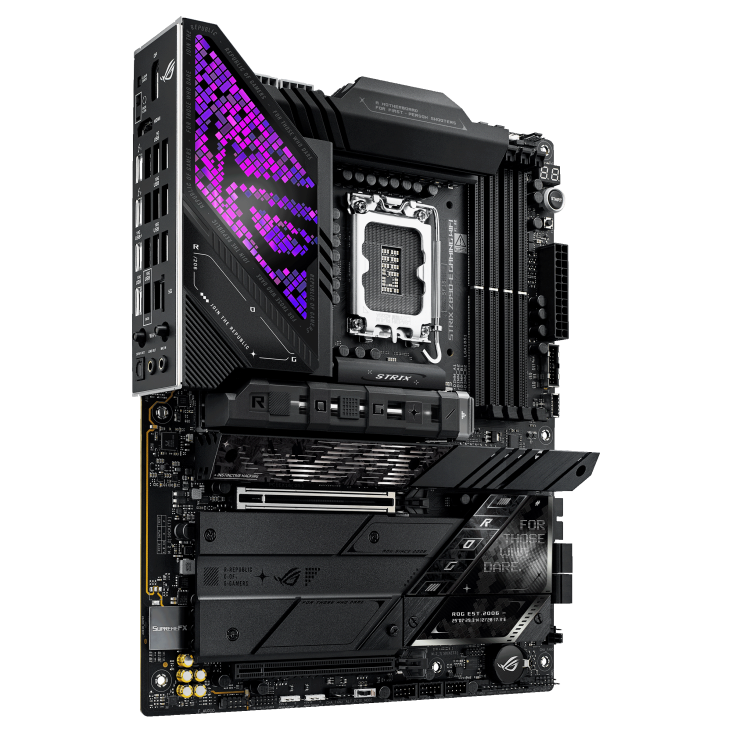

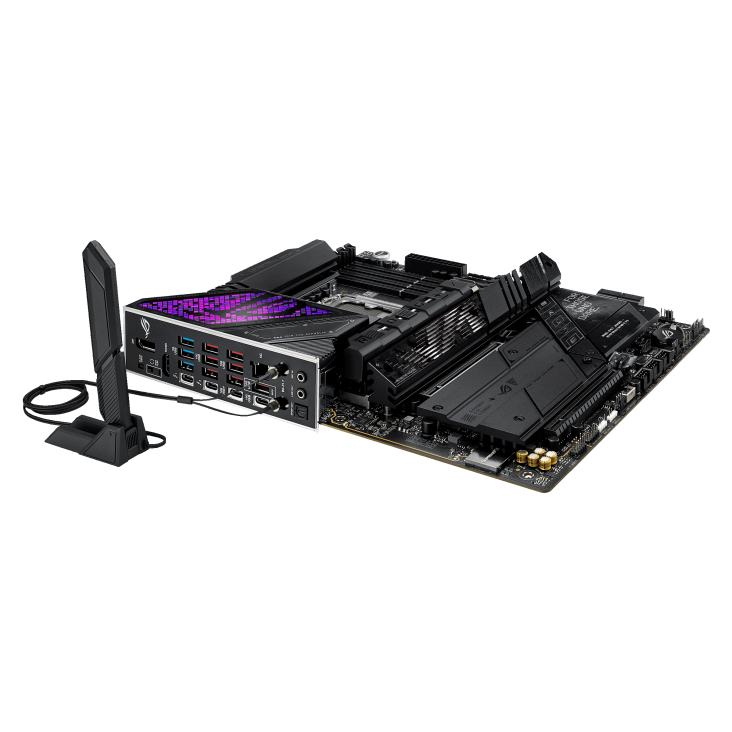

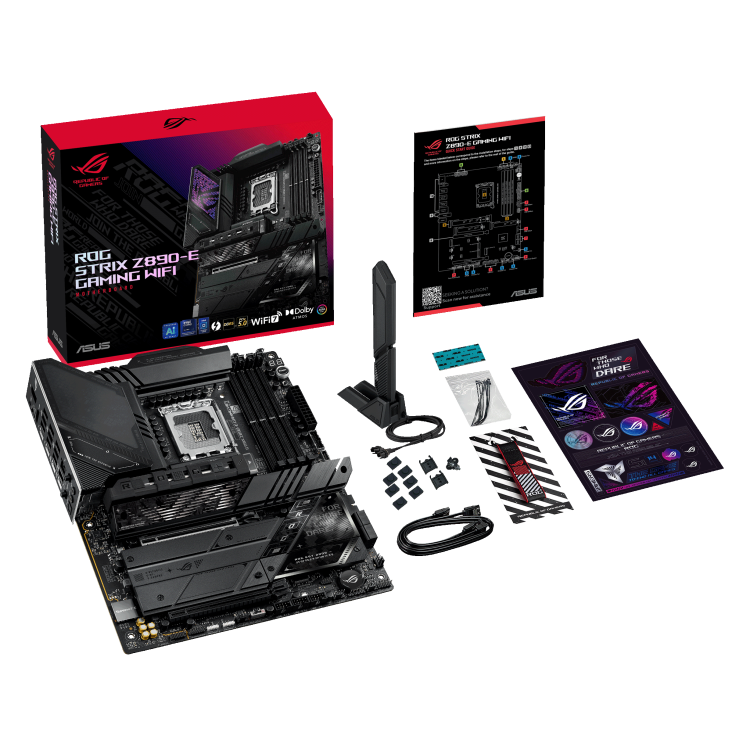

مادربرد ایسوس Motherboard Asus ROG STRIX Z890-E Gaming Wi-Fi DDR5

CPU

Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2)

Chipset

Intel® Z890 Chipset

Memory

4 x DIMM slots, max. 256GB, DDR5 / Support up to 8800+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)

Graphics

1 x DisplayPort / 1 x HDMI® port / 2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs

Expansion Slots

Intel® Core™ Ultra Processors(Series 2) / 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes) / Intel® Z890 Chipset / 1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage

M.2*3 PCIe 5.0 x4 mode / M.2*4 PCIe 4.0x4 mode

Ethernet

1 x Realtek 5Gb Ethernet ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate Bluetooth® v5.4

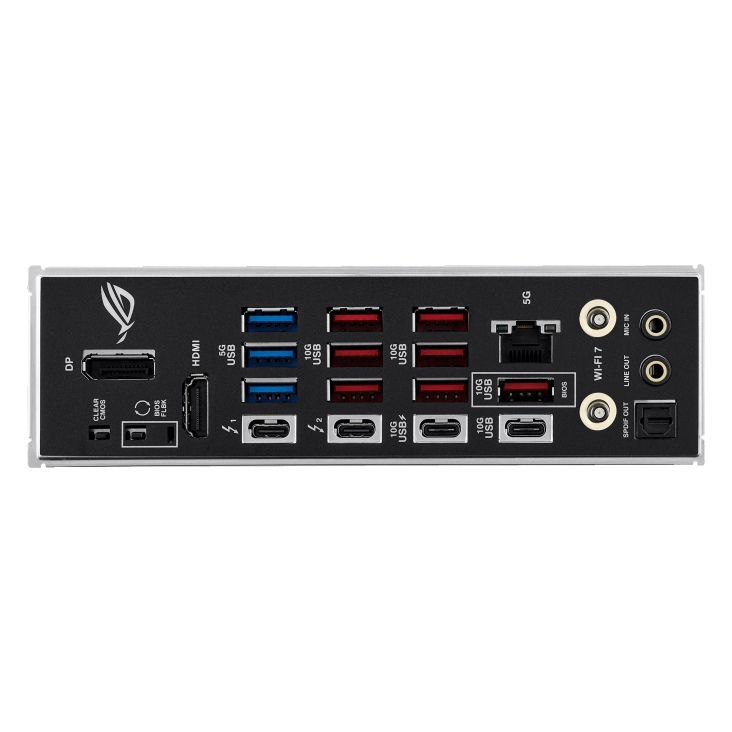

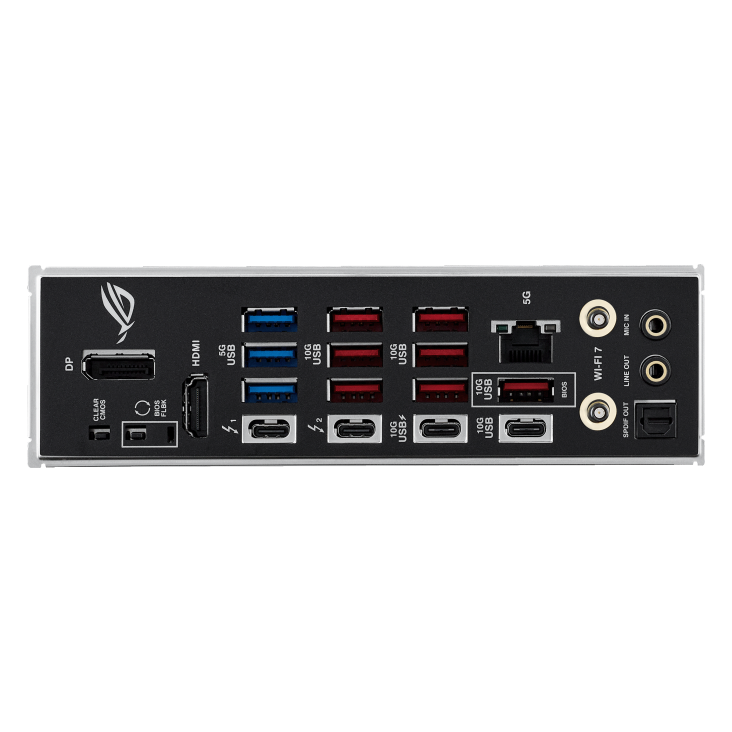

USB

Rear USB (Total 14 ports) / Front USB (Total 11 ports)

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Operating System

Windows® 11 (22H2 & later)

Form Factor

ATX Form Factor (30.5 cm x 24.4 cm)
