CPU
Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2)
Chipset
Intel® Z890 Chipset
Memory
4 x DIMM slots, max. 256GB, DDR5 / Support up to 8800+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)
Graphics
1 x DisplayPort / 1 x HDMI® port / 2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs
Expansion Slots
Intel® Core™ Ultra Processors(Series 2) / 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes) / Intel® Z890 Chipset / 1 x PCIe 4.0 x16 slot (supports x4 mode)
Storage
M.2*3 PCIe 5.0 x4 mode / M.2*4 PCIe 4.0x4 mode
Ethernet
1 x Realtek 5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate Bluetooth® v5.4

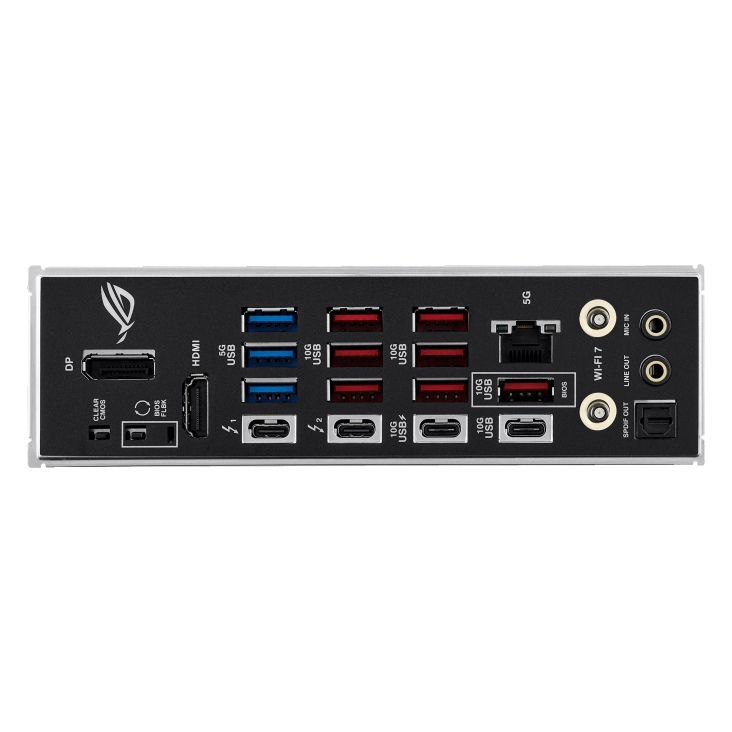

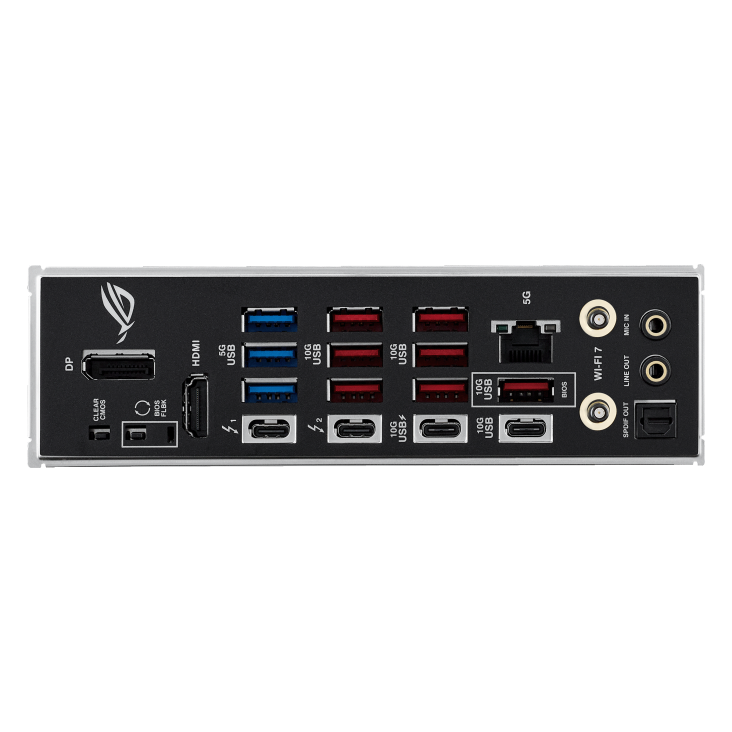

USB
Rear USB (Total 14 ports) / Front USB (Total 11 ports)
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Operating System
Windows® 11 (22H2 & later)
Form Factor
ATX Form Factor (30.5 cm x 24.4 cm)
